Tank level indicator OCIO

oilwaterfuel

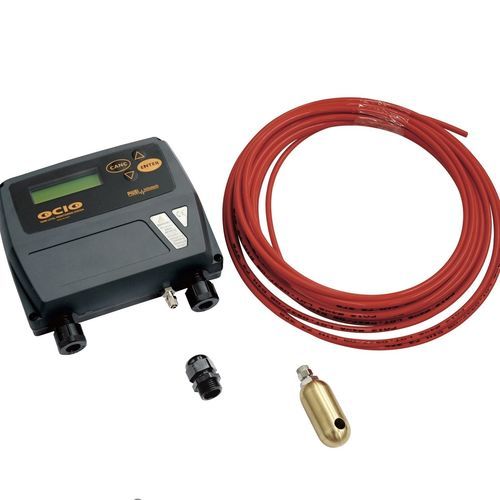

detects the static pressure generated by the fluid height by means of a tube inserted into the tank and displays the fluid level or volume. The system consists of: A tube for detecting static pressure, the tube end is inserted from the top of the tank and lowered down into the liquid until it touches the bottom; A control unit for displaying the level and managing the system. The unit is equipped with an intuitive, complete software and permits the connection of two alarm or lock devices. The system consists of: A control unit for displaying the level and managing the system. The unit is equipped with an intuitive, complete software and permits the connection of two alarm or lock devices. A tube for detecting static pressure: The tube end is inserted from the top of the tank and lowered down into the liquid until it touches the bottom. The software is used to: Set tank dimensions and type Define indication level Define alarm levels Calibrate the instrument Define measurement unit Based on the set alarm levels, the control unit deactivates or activates the contact by acting as a remote switch for starting the alarms or cutting power to the connected equipment.
