CNC punching center PCC180-eautomaticelectricsheet metal
Add to favorites
Compare this product
Characteristics
- Control
- CNC, automatic
- Drive type
- electric
- Product handled
- sheet metal
- Associated function
- cut-to-length
- Other characteristics
- coil-fed
Description

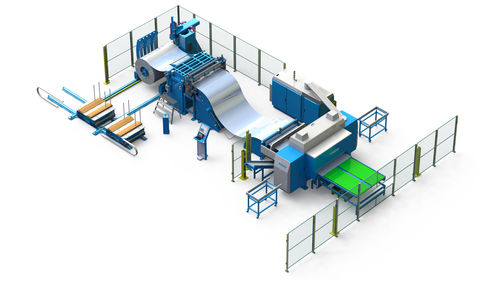

The widest CNC Coil Punch on earth! This PivaPunch punches blanks for wrappers of blowers, air handlers and furnaces for a major US supplier – straight from the coil. The hole patterns, corner notching and cut to length is done with the CNC.
Large parts can be produced of a single piece without joining parts together. Also, the number of different Coils is minimized since the coil width becomes the length of the panel is certain sizes.
Sheet thickness: 0,5 mm - 2 mm
Working length: inf. strip feeding, 1000 mm - 5000 mm
Working width: 120 mm - 1830 mm
Material: mild steel, stainless steel, hot-dip galvanized steel, electrogalvanized steel, plastic coated steel, pre-painted steel, aluminium
