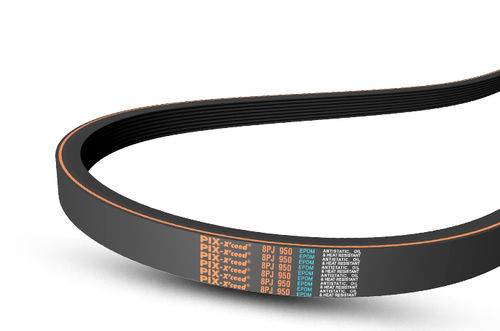

Ribbed belt PIX-X'ceed®

rubberfor machine toolsagricultural

Ribbed Belts are an ideal solution for compact drives in household appliances and heavy machinery. Ribbed Belts enable economic solutions even under difficult drive conditions, such as large transmission ratios, high Belt speeds, small pulley diameters and back idler pulleys. Ribbed Belts consist of multiple V-grooves. The design allows operation on small pulley diameters. Ribbed Belts offer high Belt speed. Ribbed Belts are designed for high power transmission ratios and offer high power output. Ribbed Belts are available in PJ, PK, PL and PM profiles Features - High power transmission capacity - Suitable for small pulley diameters - Maximum Belt linear speed up to 60 m/Sec - Highly flexible, noise free & smooth running - Can be used for speed ratios up to 1:30 - Anti-static oil & heat resistant - Temperature range: -25°C to +100°C Constructional Details 1.High tensile tension member across full width of Belt for maximum utilisation of face width 2.Ribbed driving surface for maximum area of contact and reduced face pressure 3.Special rubber compound for high frictional grip and maximum tractive effort Applications Crude oil pumps, spreaders, seeding machines, vegetable crushers, household appliances, washing machines, dryers, machine tools, grinders, etc.
