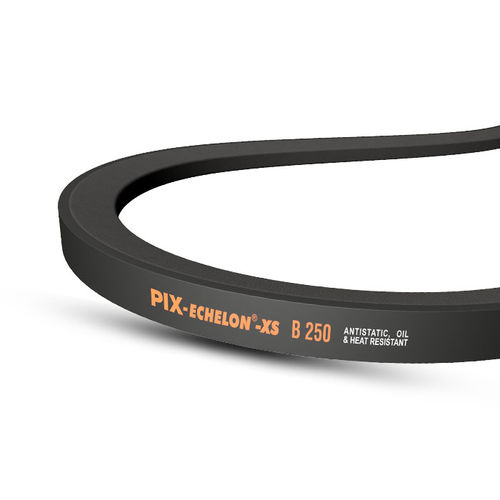

Custom belt PIX-Echelon®-XS (PT-O)
Vrubberfor food

custom belt
custom belt
custom belt
custom belt
Add to favorites
Compare this product

Go to the PIX Transmissions Limited website for more information

Characteristics

Type
V
Material
rubber
Product applications
for food
Sector
industrial, for the food industry
Other characteristics
custom, anti-static, wrapped, oil-resistant, heat-resistant
Length

Max.: 23,545 mm
(926.97 in)

Min.: 2,159 mm
(85 in)

Width

17 mm, 22 mm
(0.669 in, 0.866 in)

Thickness

14 mm, 16 mm, 17 mm
(0.55 in, 0.63 in, 0.67 in)

Temperature

Max.: 80 °C
(176 °F)

Min.: -18 °C
(-0.4 °F)

Description

Features - Application-specific, robust Belt design - Longer service life - High tensile strength with minimum elongation - Excellent adhesion strength to eliminate top profile separation - Designed for applications where power transmission and conveying of material is done simultaneously - Temperature range: -18°C to +80°C Constructional Details 1.Application specific top-profile made of specially compounded rubber 2.High tenacity, low stretch, specially treated polyester cords 3.Specially compounded high modulus compression rubber 4.Wear resistant bias-cut neoprene rubberised polyester cotton fabric Applications Food-grain, ceramic industry
