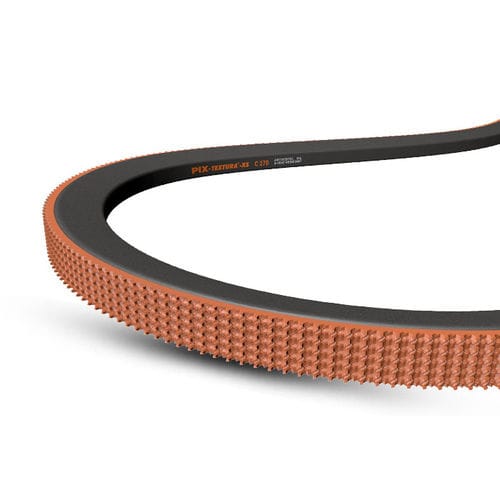

Custom belt PIX-Textura®-XS (PT-HC)
Vrubberfor conveyor rollers

Custom belt - PIX-Textura®-XS (PT-HC) - PIX Transmissions Limited - V / rubber / for conveyor rollers
Custom belt - PIX-Textura®-XS (PT-HC) - PIX Transmissions Limited - V / rubber / for conveyor rollers
Custom belt - PIX-Textura®-XS (PT-HC) - PIX Transmissions Limited - V / rubber / for conveyor rollers - image - 2
Custom belt - PIX-Textura®-XS (PT-HC) - PIX Transmissions Limited - V / rubber / for conveyor rollers - image - 3
Add to favorites
Compare this product

Go to the PIX Transmissions Limited website for more information

Characteristics

Type
V
Material
rubber
Product applications
for conveyor rollers, for food
Sector
industrial
Other characteristics
custom, anti-static, wrapped, oil-resistant, abrasion-resistant, chemical-resistant, high wear resistance
Length

Min.: 405 mm
(15.94 in)

Max.: 23,546 mm
(927.01 in)

Width

17 mm, 22 mm
(0.669 in, 0.866 in)

Thickness

17 mm, 20 mm
(0.67 in, 0.79 in)

Temperature

Min.: -18 °C
(-0.4 °F)

Max.: 80 °C
(176 °F)

Description

Features - Application-specific, robust Belt design - Longer service life - High tensile strength with minimum elongation - Excellent adhesion strength to eliminate top profile separation - Designed for applications where power transmission and conveying of material is done simultaneously - Temperature range: -18°C to +80°C Constructional Details 1.Application specific honey-combtop-profile made of specially compounded rubber 2.Polyester cords are specially treated to provide high tensile strength and low stretch 3.Specially compounded compression rubber to increase adherence without deformation 4.Rubber impregnated polyester cotton fabric for resistance to external influence Applications Ceramic and food industry
