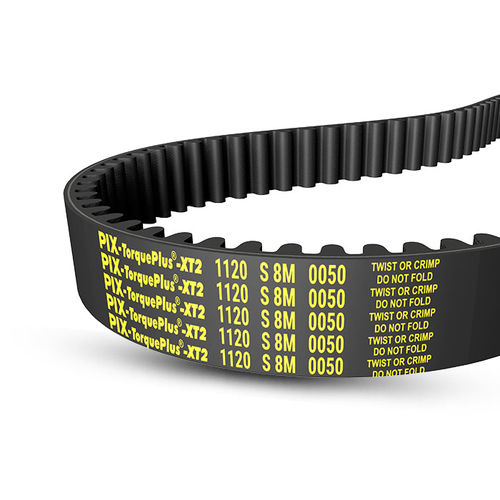

High-power power transmission belt PIX-TorquePlus®-XT2
timingrubberfor the paper industry

high-power power transmission belt
high-power power transmission belt
high-power power transmission belt
high-power power transmission belt
Add to favorites
Compare this product


Characteristics

Type
timing
Material
rubber
Product applications
for the paper industry, for machines, for medical devices, for packaging machines, for robots
Sector
for the textile industry, for the food industry, medical
Other characteristics
anti-static, high-power, high-resistance, low-noise, oil-resistant, heat-resistant
Length

Max.: 4,578 mm
(180.24 in)

Min.: 255 mm
(10.04 in)

Thickness

3.4 mm, 3.8 mm, 5.3 mm, 6 mm, 10 mm
(0.13 in, 0.15 in, 0.21 in, 0.24 in, 0.39 in)

Pitch

5 mm, 8 mm, 14 mm
(0.197 in, 0.315 in, 0.551 in)

Temperature

100 °C
(212 °F)

Description

Features - 50% to 70% enhancement in power-rating over PIX-X'act® HTD/STD Belts - Higher angular speed, resistance to loads and low noise - Increased operational efficiency up to 98% - Optimum operational efficiency and augmented Belt life - Lower operational cost - Anti-static properties as per ISO 9563 - Oil & heat resistance - Temperature resistance up to 100°C Constructional Details 1.Specially designed flexible neoprene compound offers high resistance to fatigue and adverse environmental conditions 2.Fibreglass cords for enhanced stability against dynamic load conditions, high resistance to elongation, offers excellent flex life and high tensile strength 3.High modulus teeth rubber for superior power transmission and high resistance to oil and heat 4.pecially woven fabric resistant to heat and abrasion protects the teeth from damage Applications Food processing machines, paper & packaging machines, printing machines, robotic equipment, conveyors, office equipment, medical equipment, dough mixers, textile machines, etc.
