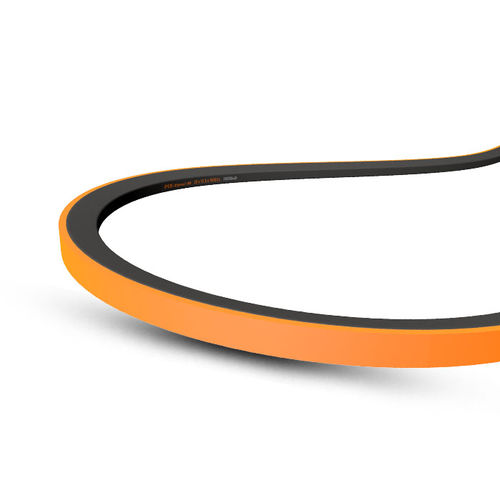

Custom belt PIX-X'press®-XSVrubberfor conveyor rollers
Add to favorites
Compare this product
Characteristics
- Type
- V
- Material
- rubber
- Product applications
- for conveyor rollers
- Sector
- industrial
- Other characteristics
- custom, anti-static, wrapped, oil-resistant, abrasion-resistant, heat-resistant, high wear resistance
- Length
Max.: 866 in
Min.: 272 in
- Width
20 mm
(0.787 in)- Thickness
15 mm
(0.59 in)- Temperature
Max.: 80 °C
(176 °F)Min.: -18 °C
(-0.4 °F)
Description
Features:
• Application-specific, robust Belt design
• Longer service life
• High tensile strength with minimum elongation
• Excellent adhesion strength to eliminate top profile separation
• Designed for applications where power transmission and conveying of material is done simultaneously
• Temperature range: -18°C to +80°C
Constructional Details
1.Application-specific top-profile made of specially compounded rubber
2.Polyester cords are specially treated to provide high tensile strength and low stretch
3.Specially compounded compression rubber to increase adherence without deformation
4.Rubber impregnated polyester cotton fabric for resistance to external influence
Application:
Ceramic industry
