PIX Belt length finder

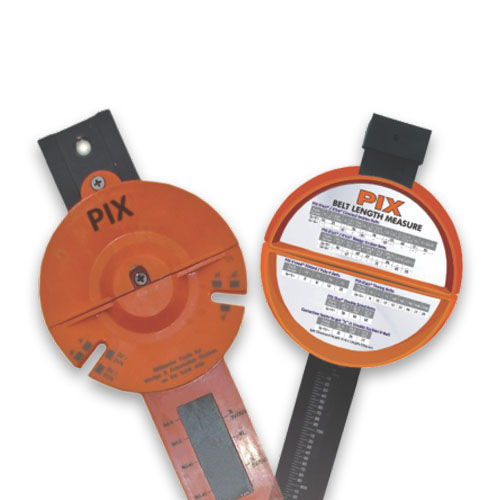

PIX Belt Length Finder is used for checking the length of the Belt where size on the Belt is not clearly visible. It can also be used to confirm the size of the Belt.
There are three types of Length finders
• Conventional
• Flat Pulley
• Poly-V
The maximum Belt length which can be measured with these length finders is up to 120 inches.
Belt length measurement procedure
1. Place the Belt on the upper half of the pulley, which is fixed.
2. Slide down the lower half of pulley with the Belt along the scale till the Belt gets sufficiently stretched.
3. Marker at the lower position of the bottom half will show the reading in mm / inches.
4. Note down the reading and compare it value with the Belt size mentioned on the Belt.
