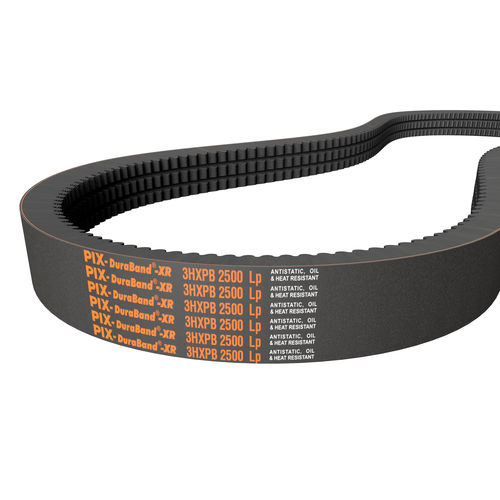

Banded power transmission belt PIX-DuraBand®-XRtoothedVrubber
Add to favorites
Compare this product
Characteristics
- Type
- toothed, V
- Material
- rubber
- Product applications
- for heavy-duty applications, for vehicles, for generator sets, for robots, fan
- Sector
- industrial, for the textile industry, for the automotive industry, for the food industry, medical
- Other characteristics
- anti-static, high-performance, high-power, raw edge, for heavy loads, for pulsating loads, banded, oil-resistant, heat-resistant
- Length
Min.: 600 mm
(23.62 in)Max.: 5,000 mm
(196.85 in)- Width
Min.: 13 mm
(0.512 in)Max.: 22 mm
(0.866 in)- Thickness
Min.: 10 mm
(0.39 in)Max.: 20 mm
(0.79 in)- Pitch
Min.: 15.9 mm
(0.626 in)Max.: 25.5 mm
(1.004 in)- Temperature
Min.: -25 °C
(-13 °F)Max.: 100 °C
(212 °F)
Description
Features
Extended power transmission capacity up to 25% as compared to standard single Belts
Lesser number of Belts is required as compared to a multiple single-Belt drives
Unique cog profile enhances the flexibility and heat dissipation rate
Extended service life
Anti-static, oil and heat resistant
Temperature range: -25ºC to +100ºC
Constructional Details
Specially designed top band for extra protection against reverse bend & foreign particles
High modulus cushion compound for superior adhesion
High tenacity, low stretch specially treated polyester cord
Fibre loaded, thermal resistant, high modulus base compound
Moulded cog offers better flexibility and accelerates heat dissipation rate
