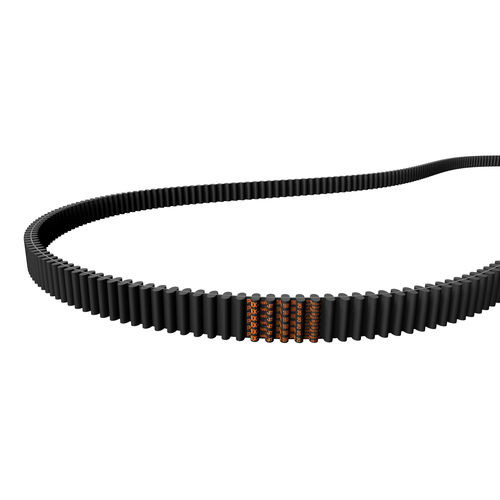

Double-sided belt PIX-Duo®-XTtoothedrubberfor machines
Add to favorites
Compare this product
Characteristics
- Type
- toothed
- Material
- rubber
- Product applications
- for machines, agricultural, for light-duty applications, for robots, for lawn-mowers, for cleaners, for the paper industry
- Sector
- for the textile industry, for the automotive industry
- Other characteristics
- maintenance-free, for heavy loads, high-performance, double-sided
- Length
Max.: 6,860 mm
(270.08 in)Min.: 400 mm
(15.75 in)- Thickness
Max.: 14.8 mm
(0.58 in)Min.: 3.05 mm
(0.12 in)- Pitch
Max.: 14 mm
(0.551 in)Min.: 3 mm
(0.118 in)- Temperature
Max.: 100 °C
(212 °F)Min.: -25 °C
(-13 °F)
Description
Features
- Facilitates power transmission from both sides of the Belt
- Highly flexible
- Extended stability, durability, strength and life
- Temperature range: -25°C to +100°C
Constructional Details
1.High wear resistance nylon stretchable fabric on teeth provides high strength to teeth profile for longer service life
2.Fibre loaded compression rubber for dimensional stability to minimize the noise
3.Centre corded special treated glass cord for high strength & negligible elongation
Applications
Textile units, paper packaging & printing machines, hand-held power tools, food processors, office equipment, currency counting machines, medical diagnostic equipment, vending machines, robotics, lawn & garden, vacuum cleaners, etc.
Catalogs
No catalogs are available for this product.
See all of PIX Transmissions Limited‘s catalogsOther PIX Transmissions Limited products
PIX-TIMING OR SYNCHRONOUS BELTS
