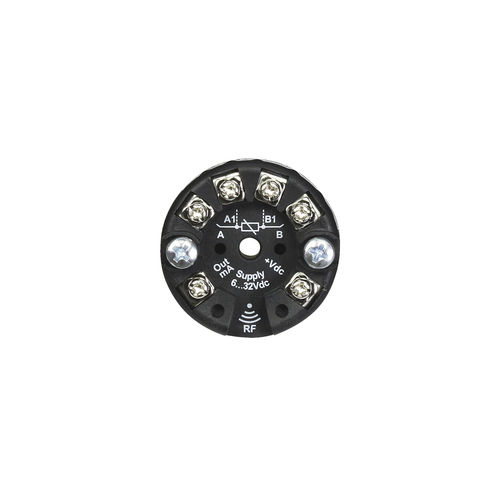

Probe head-mounted temperature transmitter 2000.35 series
DIN rail mountPt100Pt1000

Probe head-mounted temperature transmitter - 2000.35 series - Pixsys - DIN rail mount / Pt100 / Pt1000
Probe head-mounted temperature transmitter - 2000.35 series - Pixsys - DIN rail mount / Pt100 / Pt1000
Probe head-mounted temperature transmitter - 2000.35 series - Pixsys - DIN rail mount / Pt100 / Pt1000 - image - 2
Probe head-mounted temperature transmitter - 2000.35 series - Pixsys - DIN rail mount / Pt100 / Pt1000 - image - 3
Probe head-mounted temperature transmitter - 2000.35 series - Pixsys - DIN rail mount / Pt100 / Pt1000 - image - 4
Add to favorites
Compare this product


Characteristics

Mounting
probe head-mounted, DIN rail mount
Input type
Pt100, Pt1000, thermocouple, 2-wire, 3-wire, 4-wire
Output signal
4-20 mA
Other characteristics
programmable

Description

The transmitters for DIN/B head convert a signal acquired by temperature probes PT100, PT1000 or Ni100 (with 2-, 3- and 4-wire connections) or Thermocouples into a 4..20 mA signal (2-wire technology), current-loop. These converters ensure high accuracy on the reading scale with 16-bit conversion and possibility to rescale the output 4..20mA basing on input range. Quick and simple programming The programming relies on NFC communication: it is possible to choose between dedicated programmer that allows you to perform all settings and any calibrations quickly and without need to power-up the converter or even to programthe converters by MyPixsys Appfor Android smartphones. 2.8K Word non volatile (circular buffer) memory are dedicated to a data-logging function with a sampling time that can be set by the user. The RF-Programmer software (available to download from the reserved access area of the website) allows you to download, view on the PC and print the temperature-time curve.
