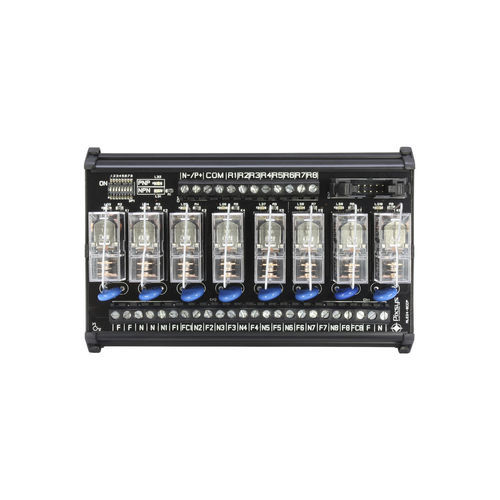

Electromechanical relay module RLE24 series

switchinglow-powerI/O

This DINrail mounted relays module may be used as interface for any I/O board up to max 8 relay outputs with NO and NC contact (code RLE24-8-CLP) or with common signal on each relay (code RLE24-8-CCP). In the Pixsys range it can be used in combination with MCM260/ PLE500/ ETD1644. Using electromechanical relays as switching elements between control device and actuators allows to obtain galvanic isolation and improve the ground connection of the plant as well as the fitting to power fluctuations. Availability of relays 16A with socket for easy replacement enables to increase power in comparison to standard low-power command outputs. It is possible to enable/desable locally the single outputs by dip-switch. Input connection to control circuit is possible by flat connector or screw terminal block. Surge protection varistor on relay contact is also available.
