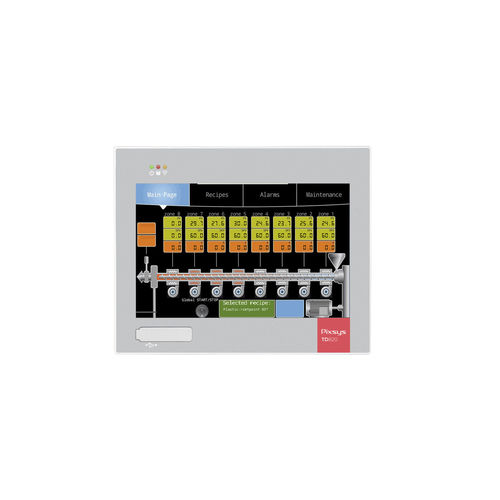

Resistive touch screen HMI TD820

panel-mount1280 x 800ARM Cortex-A8

Operator panel TD820 is a touchscreen HMI running Windows CE. The ARM CORTEX A8 processor and an integrated solid state memory make it suitable for industrial use, even in environments in which it may be subject to mechanical disturbances, such as vibrations. Two serial Buses (RS232 and RS485), an ethernet port 10/100/1000 and a CanOpen bus ensure connectivity to the main field buses. It is possible to directly connect digital I/Os (up to two ETD1644 expansion boards), creating a complete and compact control system. The USB port, available also on front panel, provides functions such as data exporting, program updates, and peripherals connection. The entire range of HMI panels with Windows CE features a programmable soft-PLC relying on LogicLab development environment (compliant with programming standard IEC-61131), which allows development of control logics in a stand-alone panel, without the support of external PLC modules. The SCADA Movicon 11 CE by Progea softwarehouse is integrated as runtime into Pixsys panels and enables powerful graphics and synoptics, as well as direct interface with the integrated soft-PLC or with third-party PLCs.
