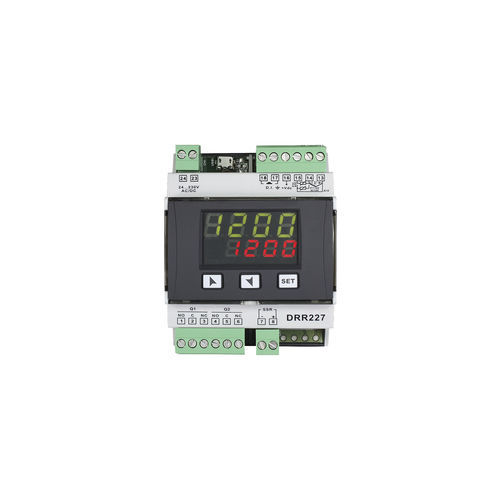

Digital thermal regulator DRR227PID1-loopIP20
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Type
- PID, 1-loop
- Protection level
- IP20, IP65
- Use
- process
- Other characteristics
- automatic, DIN rail
- Maximum temperature
Max.: 45 °C
(113 °F)Min.: 0 °C
(32 °F)
Description
DIN rail-mounted thermoregulator 43880 Single process setpoint, dual alarm threshold.
The analogue inputcan be configured for different types of temperature sensors RTD/Thermocouples and processes, the relay outputs and SSRs can be used as control and alarm. An input is available for a TA current transformer with a maximum current threshold. Useful extended range power supply from 24 to 230V AC/DC with galvanic isolation from the network.
The software's functions include the SSR Burst-firing and Phase Angle control modes for inductive loads, resistive loads and infrared bulbs (monophase and triphase systems).
The digital input allows the external activation of various functions, including selection of automatic/manual mode.
