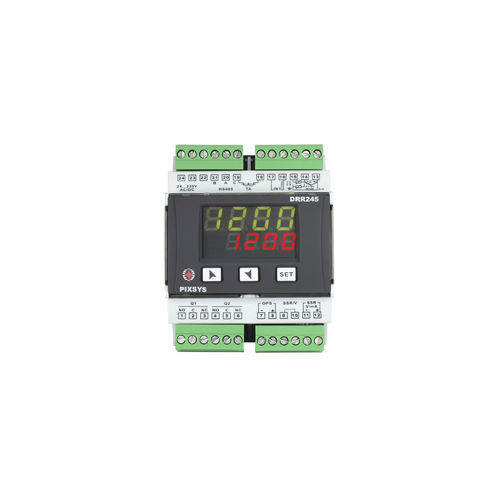

Modbus PID controller DRR245

serial4-digitpanel-mount

The PID controller DRR245 distinguishes itself from the range of rail-mounted controllers due to its flexibility and configurability that are summed up in a single order code. The input can be programmed for temperature sensors, resistance thermometers and thermocouples, pressure transmitters, humidity and flow sensors. The controller's outputs can be selected as command/multiple alarm modes/analogue retransmission. Serial communication is in RS485 with Modbus RTU/Slave protocol. Useful extended range power supply from 24 to 230V AC/DC with galvanic isolation from the network. In addition to its function as a PID hot-cold controller, the DRR245 controller also serves as a signal convertor thanks to its galvanically isolated analogue output, which can be used in process retransmission/setpoint modes.
