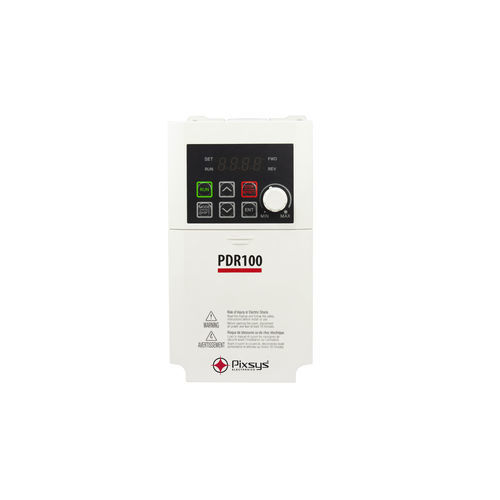

Single-phase frequency inverter PDR100 series

Modbusstandardbuilt-in

The inverters of the PDR100 range are designed for applications requiring compact sizes as well as short installation and configuration times thanks to quick mounting on DIN rail and built-in EMC filters. Configuration and commissioning of the inverter are facilitated by integrated LCD panel with dedicated function keys and built-in potentiometer. The serial port RS485 with Modbus RTU protocol, also built-in, allows a constant, easy and inexpensive drive control. The use of the Pixsys inverter for your application will be easy and fast thanks to their integration into the device catalogue of LogicLab, the unique platform for programming Pixsys PLCs and HMIs. Applications - Pump control - Fans - Conveyor belts - Automatic machines Main features - LCD panel with pushbuttons and potentiometer - Wide selection of standard I/O - Built-in cooling fan - Built-in EMC filter - Optional remote terminal Power range 0,4 kW to 2,2 kW Voltage 200 - 240 VAC single-phase
