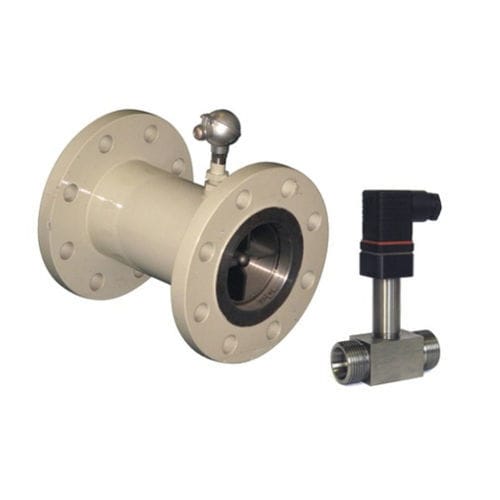

Turbine flowmeter DR12 series
volumefor chemicalsDN10 - 3/8"

turbine flowmeter
turbine flowmeter
turbine flowmeter
turbine flowmeter
turbine flowmeter
Add to favorites
Compare this product


Characteristics

Technology
turbine
Type
volume
Fluid
for chemicals
Pipe diameter
DN10 - 3/8"
Installation
flange
Material
stainless steel, PTFE
Applications
for the food industry, for the pharmaceutical industry
Volumetric flow rate

Max.: 275 l/h
(72.6473 us gal/h)

Min.: 55 l/h
(14.5295 us gal/h)

Process temperature

110 °C, 150 °C
(230 °F, 302 °F)

Process pressure

400 bar
(5,801.51 psi)

Precision

0.5 %

Description

The flowmeters of the DR12 series are robust measuring turbines for mobile or stationary use. An axial flow turbine wheel rotates proportionally to the average flow velocity in the pipeline. The turbine wheel is scanned by an inductive sensor (coil) without contact. the resulting output frequency is a measure of the flow rate The turbine body and measuring insert are made of stainless steel, the bearings optionally of tungsten carbide or PTFE. The instruments can be supplied with external thread (up to 2") or flange connection (up to DN 400). Typical applications The DR12 turbine flowmeters are mainly used for the detection and measurement of low-viscosity media. The materials used, the high compressive strength and the wide measuring range allow the use of these devices in a wide variety of applications in mechanical engineering, chemicals, pharmaceuticals, food technology and much more.
