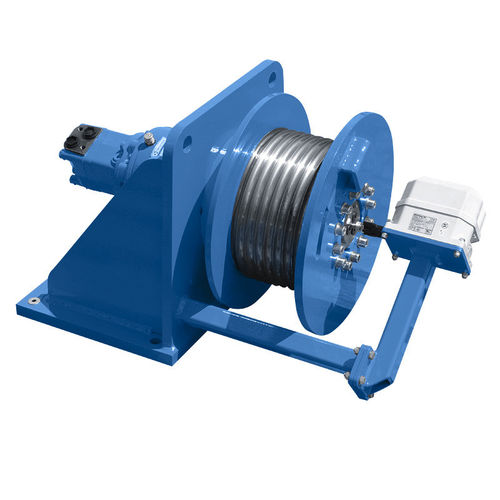

Hydraulic winch PCW-H

Hydraulic winch - PCW-H - PLANETA-Hebetechnik GmbH
Hydraulic winch - PCW-H - PLANETA-Hebetechnik GmbH
Hydraulic winch - PCW-H - PLANETA-Hebetechnik GmbH - image - 2
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Type
wire rope
Capacity

Max.: 5,250 kg
(11,574.3 lb)

Min.: 950 kg
(2,094.4 lb)

Description

•Capacity from 800 kg up to 5.250 kg •Heavy duty planetary gearbox and air brake •Toothed wheel motor or piston motor •Different speeds •Duty cycle 60 % - 100% •Most compact design •FEM classification M4 (1A m) or higher •Documentation alternatively in German or English •Test book and EC Declaration Options: •Rope and hook completely mounted •Grooved drum •End switch and drum pressure roller •Drum guard and special coatings •Versions for ATEX and ships With its gearbox partially inside the cable drum, the PLANETA FD-H cable winch is scarcely any larger than its drive unit, making it the most compact version for heavy-duty industrial applications. Through the use of angled gearboxes, it can even be made more compact on request. Additionally, it does not have a second drum bearing, which makes maintenance much easier. Our production facilities allow us to supply the FD-H within a very short period of time, even after being adapted to suit specific requirements.
