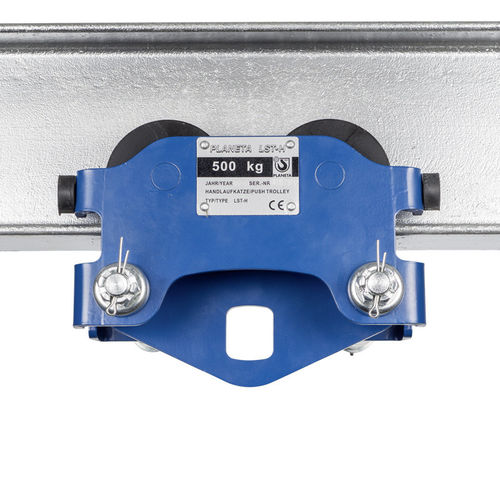

Manual hoist trolley LST-H

beam mounted

•Capacity from 500 kg to 10.000 kg •High quality standard for hard and long-lasting operation •Rubber buffer on both sides •Large adjustment range on many carriers by simply changing spacers •Adjustment possibilities up to high HE-B-girders with 300 mm width •Double-sided anti-tipper on both sides •Balanced load distribution on four wheels LST-trolleys are manufactured in a higher quality for a very rough and unusual use. The chain hoist PREMIUM PRO of the same capacity as the trolley fit easily into the lugs with their top hook, but these LST-trolleys are best combined with PREMIUM PRO. Trolleys have rubber buffers at both sides! Wide adjustment for any flange width Discs of different thicknesses are on the carrying bolts that allow to make the distance between side plates shorter or longer by exchanging them from outside to inside. There are two main bolt lengths. The standard bolts are adjustable for normal width. Bolts of size 2 offer more possibilities up to beam flange sizes on HE-B-beams with 300 mm width. Prefer this when unclear for what kind of work you will use them. Double safety Climb stop on both side of the beam flange hinders the trolley to climb up the beam and prevents from falling down. Right angled side plates work as wheel shaft breakage protection, falling down protection and beam flange cleaner. Sturdy side plates The load is balanced by two carrying bolts on all four wheels because the castle nuts tie only one side. This gives the bolts a bit of tolerance for movement and equalizes unproper beam flanges.
