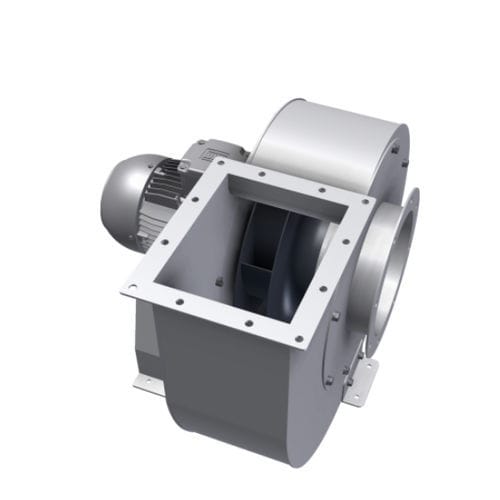

Mobile fan WPMradialsuctionexplosion-proof
Add to favorites
Compare this product
Characteristics
- Type
- mobile
- Configuration
- radial
- Function
- suction, explosion-proof
- Supply voltage
- 230VAC, 400 VAC, 690 V
- Material
- steel
- Applications
- motor
- Other characteristics
- medium-pressure, flange
- Air flow
Min.: 900 m³/h
(31,783.2 ft³/h)Max.: 37,700 m³/h
(1,331,362.935 ft³/h)- Diameter
Min.: 250 mm
(9.843 in)Max.: 630 mm
(24.803 in)- Rotational speed
1,500 rpm, 3,000 rpm
(9,425 rad.min-1, 18,850 rad.min-1)- Noise level
Min.: 81 dB
Max.: 118 dB
Description
Medium-pressure radial fans with high capacities. Equipped with impellers that guarantee flows over a wide operating field. They convey large volumes of air at pressures higher than the “WPL” series. Also suitable for filtration and dedusting processes.
• Available in figures: Rd 0, 90, 270 and Lg 0, 90, 270
• Air flow temperatures: -20 to +80°C
• Motor operating temperatures: -20 to +50°C
• Installed motor powers: 0.55 – 30kW
• Motors adapted as standard for speed regulation by means of a frequency converter
• Drainage for figures requiring them
• Sophisticated solutions for easy attachment and transportation of the fan to the work site
• Casing protected against corrosion – powder coating
• Optional executions:
• figures other than standard, (Rd 45, 135, 180, 225, Lg 45, 135, 180, 225)
• execution form: IM V1 – inlet flange mounting
• in thermal and acoustic insulation
• impellers with flows other than standard
• motors up to 132kW
• double-sided suction (doubled capacity)
• explosion-proof
• high temperature max. temp.: +250°C
