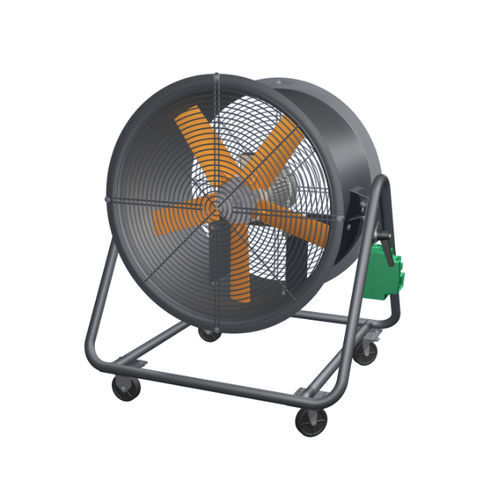

Axial fan KLRF seriescoolingventilation230VAC
Add to favorites
Compare this product
Characteristics
- Configuration
- axial
- Function
- cooling, ventilation
- Supply voltage
- 230VAC, 400 VAC
- Material
- aluminum, stainless steel, fiberglass
- Applications
- motor
- Other characteristics
- flange
- Air flow
Min.: 5,665 m³/h
(200,057.587 ft³/h)Max.: 33,356 m³/h
(1,177,956.023 ft³/h)- Diameter
Min.: 400 mm
(15.748 in)Max.: 1,000 mm
(39.37 in)- Rotational speed
1,000 rpm, 1,500 rpm
(6,283 rad.min-1, 9,425 rad.min-1)- Noise level
Min.: 58 dB
Max.: 69 dB
Description
Axial fans for localised ventilation or stationary cooling. Equipped as standard with a frequency converter for infinitely variable adjustment of the fan speed and thus the fan capacity. Built on a mobile frame with adjustable air discharge angle.
• Operating temperatures: -20 to +40°C
• Equipped with frequency converter
• Impeller material: Blades: fibreglass-reinforced polypropylene, hub: aluminium
• Power of installed motors: 0.37 -3.0kW
• Motors fitted with closed bearings, maintenance-free
• Three-phase motors adapted as standard for speed control by a frequency converter
• Steel housings
• Corrosion-protected housings – powder-coated
• Special executions:
• Housing and frame material in stainless steel
• Positioning of several fans on one frame
• Machined from structural steel sheet. Equipped with flange and inlet hopper made of casing shell
• Equipped with protective grids at inlet and outlet
• Protected against corrosion by powder coating. Painted in colour: RAL 9005 (black)
• Housing optional execution:
• Corrosion protection by hot-dip galvanising
• Material: stainless steel grade 1.4301
• Material: aluminium
• Painted in another RAL colour
