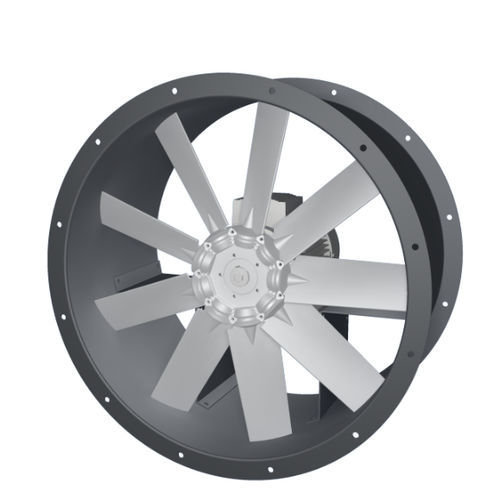

High-temperature fan 135HTaxial230VAC400 VAC
Add to favorites
Compare this product
Characteristics
- Type
- high-temperature
- Configuration
- axial
- Supply voltage
- 230VAC, 400 VAC, 690 V
- Material
- cast aluminum
- Applications
- motor
- Air flow
Min.: 8,775 m³/h
(309,886.2 ft³/h)Max.: 33,778 m³/h
(1,192,858.813 ft³/h)- Diameter
Min.: 500 mm
(19.685 in)Max.: 1,250 mm
(49.213 in)- Rotational speed
1,000 rpm, 1,500 rpm
(6,283 rad.min-1, 9,425 rad.min-1)- Noise level
Min.: 64 dB
Max.: 73 dB
Description
Axial fans designed for continuous operation at a maximum temperature of +135°C. A safe, proven and reliable design for high temperature systems. Every design element of the Type 135HT fan differs from the standard.
• Operating temperatures: from -20 to +135°C
• Installed motor powers: 0.6 – 4.0kW
• Rotor material: aluminium
• Motors fitted with closed bearings, maintenance-free
• Steel housings
• Corrosion-protected housing – powder-coated
• Special executions:
• Motors fitted with grease nipples for periodic re-lubrication of bearings
• Fan diameters up to a maximum of Ø2000mm
• Motor powers up to 55kW
• Thermal insulation of the housing
• Housing:
• Perfectly round, machined from structural sheet steel. Equipped on both sides with flanges rolled from the casing shell and provided with connection holes
• Welded motor shelf
• Protected against corrosion by powder coating. Painted in colour: RAL 9005 (black)
