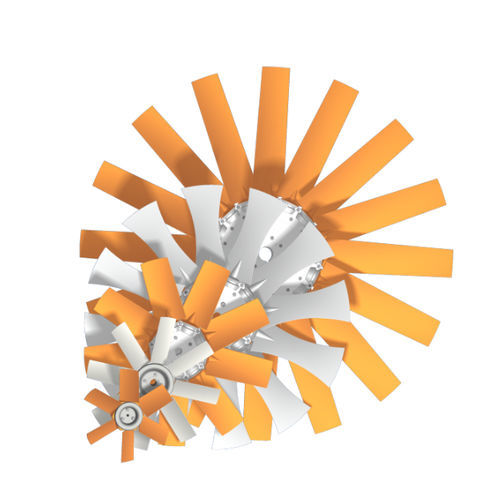

Multi-blade impeller

for blowersaxial-flow

Axial fan impellers. If the customer knows the required flow parameters, we will help to select a suitable impeller. If the parameters are unknown, we will use our experience and try to suggest the best product. • Impeller diameter range: from Ø250mm to Ø2150mm. • Equipped with 3, 4, 5, 6, 8, 9, 12, 16 blades. • Operating temperatures: • -20 to +85°C (polypropylene blades) • from -20 to +120°C (polyamide blades) • from -20 to +240°C (aluminium blades) • For diameters Ø250mm to Ø1250mm suitable for use with the following motors: 0.18 – 30.0kW • For diameters Ø900mm to Ø2150mm suitable for operation with motors with powers: 1.5 – 160.0kW • Motor speeds: 3000, 1500, 1000, 750, 600, 500 min-1 • Optional executions: • for equipment in explosion-proof execution, according to EN 13463-1:2003 and directive 94/9/EC (ATEX)
