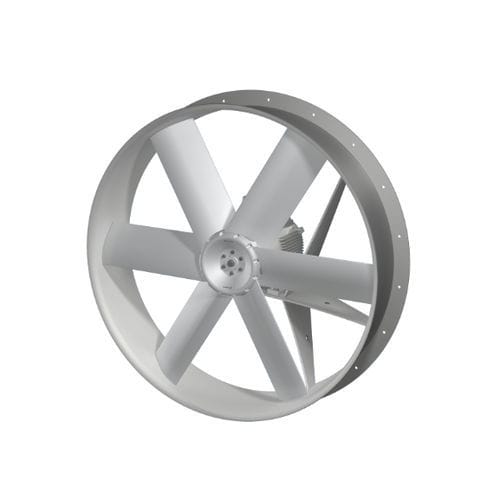

Reversible fan KSAIP55axial230VAC
Add to favorites
Compare this product
Characteristics
- Type
- reversible, IP55
- Configuration
- axial
- Supply voltage
- 230VAC, 400 VAC, 690 V
- Drive mechanism
- with asynchronous motor
- Material
- cast aluminum
- Applications
- motor
- Air flow
Min.: 38,900 m³/h
(1,373,740.535 ft³/h)Max.: 120,900 m³/h
(4,269,543.207 ft³/h)- Diameter
Min.: 1,000 mm
(39.37 in)Max.: 1,400 mm
(55.118 in)- Rotational speed
1,000 rpm, 1,500 rpm
(6,283 rad.min-1, 9,425 rad.min-1)- Noise level
Min.: 88 dB
Max.: 92 dB
Description
Axial, reversible (bi-directional) fans designed to pump larger air volumes than the KSU or KSBF series. They are produced as standard in diameters of Ø1000mm, Ø1250 and Ø1400mm. With the possibility of producing a maximum diameter of: Ø2150mm.
• Operating temperatures: -20 to +105°C
• Impeller material: blades and hub – die-cast aluminium
• Installed motor powers: 4.0 – 30kW
• Motors fitted with maintenance-free bearings
• Motors adapted as standard for speed control by a frequency converter
• Housings made of aluminum
• Optional executions:
• Maximum diameter: Ø2150mm
• High temperature max: 120°C,
• Housing made of stainless steel
• Motors fitted with grease nipples
• Flow parameters other than standard
• Installed motor powers: up to 37kW
