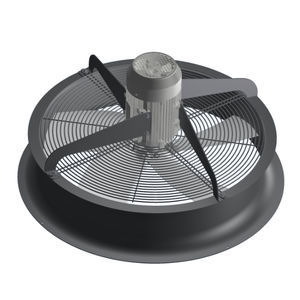

High-temperature fan STVBaxialaluminumsteel
Add to favorites
Compare this product
Characteristics
- Type
- high-temperature
- Configuration
- axial
- Material
- aluminum, steel
- Applications
- motor
- Other characteristics
- flange
- Air flow
Max.: 50,400 m³/h
(1,779,859.203 ft³/h)Min.: 20,000 m³/h
(706,293.334 ft³/h)- Diameter
Max.: 1,000 mm
(39.37 in)Min.: 800 mm
(31.496 in)- Rotational speed
1,000 rad.min-1
(159 rpm)
Description
Axial fans with impellers fitted with hubs, allowing the blade angle to be changed during operation. Impellers fitted with standard blades. Capacity adjustable by changing the blade angle. Optionally available in high temperature versions up to +85°C. Weather resistant.
• Operating temperatures: -20 to +55°C
• Installed motor powers: 2.2 – 5.5kW
• Motors fitted with maintenance-free bearings
• Motors adapted to speed control by means of a frequency converter as standard
• Steel housings
• Corrosion-protected housing – powder-coated
• Outlet protected with protective mesh
• Optional executions
• High-temperature temp. max: 85°C
• Casing made of stainless sheet
• Flow parameters other than standard
