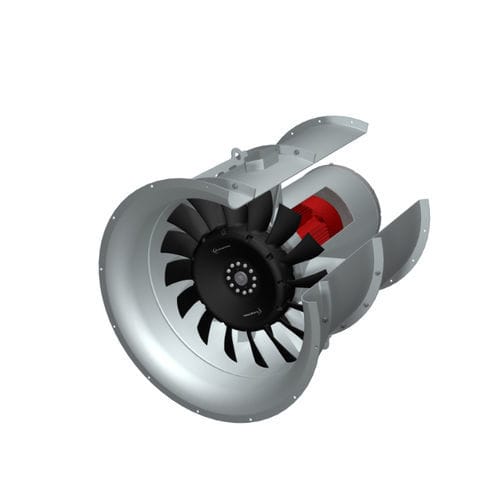

High-temperature fan WOHT

axialdrying230VAC

Axial, high-temperature, medium-pressure fans designed for the high-temperature drying process in installations where high dust and larger elements of solids contained in the flowing air can damage the motor. The fan bodies, hot-dip galvanised, are fitted with a chamber that effectively isolates the motor from the air stream. They are ideally suited for use in modern grain dryers where emphasis is placed on high drying parameters with a recuperation process. Designed for continuous operation at high temperatures, i.e. up to + 105°C. • Operating temperatures: -20 to +55°C • Installed motor powers: 5.5 – 22.0 kW • Motors fitted with maintenance-free bearings • Motors adapted as standard for speed control by a frequency converter • Steel housings • Corrosion-protected housing – hot-dip galvanised • Optional executions • High-temperature temp. max: 135°C (WOHT) • Enclosure made of stainless steel • Flow parameters other than standard
