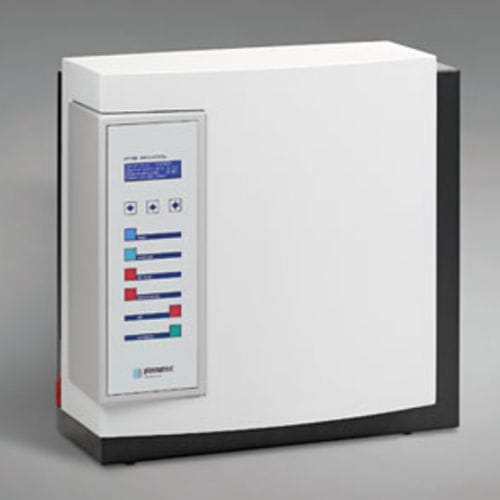

Laboratory plasma generator Openair® FG5001

for surface coating

The FG5001 Plasma Generator is the basic unit of the Plasmatreat generator 5000 series. It is distinguished by its particularly compact design allowing space-saving under-counter integration. For the first time, a constant voltage source is realized in this class. The series is equipped with state-of-the-art IGBT semiconductor amplifiers and combines highest performance with precise plasma power regulation and control functions. The FG5001 Plasma Generator can optionally operate up to two plasma nozzles. Typical applications Integration in complete systems, such as pad printing systems Simple applications in production areas with low contamination Plasmatreat laboratory systems, laboratory tables with continuously adjustable linear unit and single plasma nozzles, stationary and rotating Loan systems to test the Openair® process Main features of the FG5001Plasma Generator System control and power control using integrated micro-controller Power output: 1000 VA for activating a maximum of two plasma nozzles Voltage supply of 100 -240 VA Operating temperature range: 0-35 degrees Celsius Operational data, such as voltage, power, frequency, error and status messages, in various languages.
