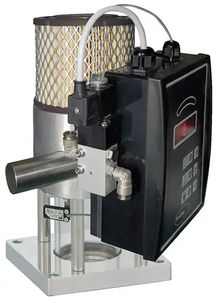

Powder feeder VLP series

modularfoodpharmaceutical products

The VLP powder feeders are a smart solution for the pneumatic conveyance of plastic materials in powder form. They can also be used to convey food, pharmaceutical and chemical product under top hygienic standards. Ideal for free-flowing powders with particle sizes from 10 to 200 μm and bulk density from 0.35 to 1.8 kg/dm3. They can be used also with smaller sized particles, using special sintered filters. Available also in the version for Matrix centralised systems and external PD vacuum pump. TECHNICAL SPECIFICATIONS: Microprocessor board controller for 8 vacuum line pumps and 56 receivers. Portable keyboard with digital display. Integrated management of: High-efficiency compressed-air vacuum pump Butterfly drain valve ASTM304 stainless steel container Antistatic polyester self-cleaning filter Compact and modular build Control unit Compressed air calibration kit Extraction probe and pipe Paddle level sensor ACCESSORIES: Skill and professionalism Sintered filter for particle sizes of 1-10 μm. THE ADDED VALUE: Skill and professionalism EASY TO INSTALL Thanks to the built-in pump, the feeder does not require a vacuum line. LOW ENERGY CONSUMPTION A special modular Venturi system provides high air flows and high vacuum, conditions with a reduced quantity of compressed air. FAST CLEANING No tools are required as the assembly is done buy means of quick release devices. LOW NOISE.
