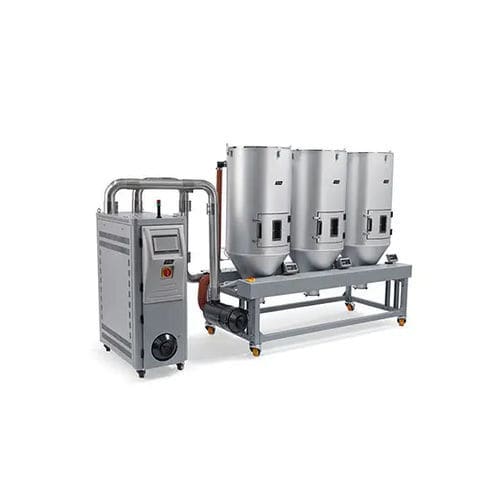

Rotary dryer DW series

medical

The DW Series dryers with rotor technology offer high performance drying and maximum efficiency and versatility in medium-sized production batches. The DW models maintain constant Dew Point values ranging between -25°C and -50°C, with air flows between 50 and 250 m3/h. The process temperature can be set to values of up to 150°C. Can be combined with a wide range of hoppers with capacities ranging from 50l to 800l. TECHNICAL SPECIFICATIONS: Microprocessor control with LCD display. Modulating airflow with inverter, according to the production demand Self-adjustable Dew Point control for process optimisation. Side channel blowers. Electronic process temperature control via PID. Solid state relays (SSR) for process heating control Daily-weekly programmer. Regeneration temperature control in relation to the required dew point. ETHERNET connection ACCESSORIES: Dew Point device with alarm. Touch screen colour operator panel Clogged filter pressure switch THE ADDED VALUE: Optimisation Easy programming with only two parameters: type of material (chosen from the database) and hourly consumption. Ready to start in just 3 minutes. Does not require water or compressed air. Airflow Management (AFM) Does not produce dust, ideal for the medical and optics sectors
