Paddle mixer MVP seriesbatchgranulesvertical
Add to favorites
Compare this product
Characteristics
- Technology
- paddle
- Batch/continuous
- batch
- Product type
- granules
- Configuration
- vertical
- Other characteristics
- manual
- Applications
- for the plastics industry
- Engine power
Min.: 2.2 kW
(2.99 hp)Max.: 18.5 kW
(25.15 hp)- Capacity
Min.: 500 l
(132.09 gal)Max.: 20,000 l
(5,283.44 gal)- Empty weight
Min.: 220 kg
(485 lb)Max.: 2,200 kg
(4,850.2 lb)
Description

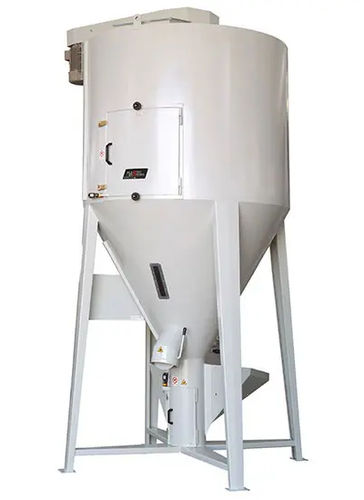

The vertical mixers of the MVP series are suitable for mixing large quantities of plastic granules.
The painted steel structure is strong and is supported on 4 legs.
The mixing screw is driven by a 4-pole, three-phase electric motor with V-belt drive.
The unit is loaded manually by means of a feeding hopper with protective grid and bag support. The various models are also equipped with protective casings, inspection hatches, spyholes, recycling drain, material drain with manual opening.
TECHNICAL SPECIFICATIONS:
Feeding hopper with protective grid.
Ducted mixing screw for fountain-type mixing operations.
Drain pipe with butterfly valve.
Bottom outlet for easy cleaning and inspection.
Level check spyhole
Inspection hatch on the cylinder (only on the larger models)
Electric panel with timer.
THE ADDED VALUE:
Paddle level sensor for mixer load control
Connection for pneumatic extraction hose.
Flange for screw/cyclone connection
