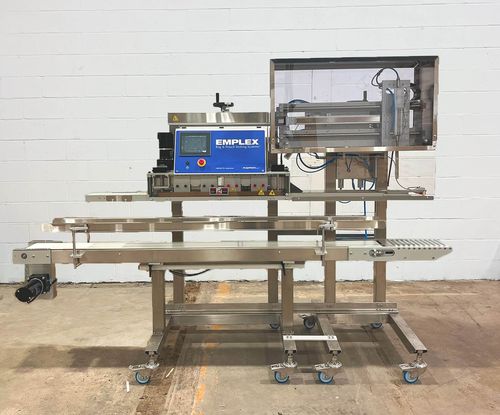

Semi-automatic sealing machine MPS7503

manualautomaticfood

The MPS7503 is built with a vacuum/gas flush system that works in conjunction with our MPS7000 series continuous band sealers. These machines create modified atmosphere packages to lock in quality and extend shelf life. The MPS7503 hermetically seal bags and pouches at speeds up to 800" (20.32 m) per minute and can be configured for manual, semi-automatic, or automatic loading. The sealing prcess can be adjusted to accommodate variations in material, ensuring reliable seal integrity on every bag. It can seal any heat sealable bag or pouch up to 12 mil/300 micron in thickness (6 mil/150 micron maximum when gusseted). • Sealer Duty = Continuous • Sealer Orientation = Vertical or Horizontal • Sealer Band = Teflon • Sealing Width = Choice of: 1/8” (3.2 mm), 1/4” (6.35 mm), 3/8” (9.5 mm), 1/2” (12.7 mm), 3/4” (19.05 mm) • Seal Throat Depth = 3.5" (88 mm) • Frame Construction - = 304 Stainless Steel Frame Legs • Conveyor = Food Grade 6" x 6 ft (15.2 cm x 182.9 cm) SS • Infeed Direction = Right to Left or Left to Right • Height Adjustment = Crank • Pressure Rollers = Stainless Steel or Rubberized • Electrical = 120V 12A or 220V 6A • Variable Speed = 800" per minute (20.32 m per minute) • Temperature Range = 0-200 degrees Celsius /0-392 degrees Fahrenheit • Heating and Cooling Capacity = 10” (25.4 cm) heating bars 10” (25.4 cm) cooling bars
