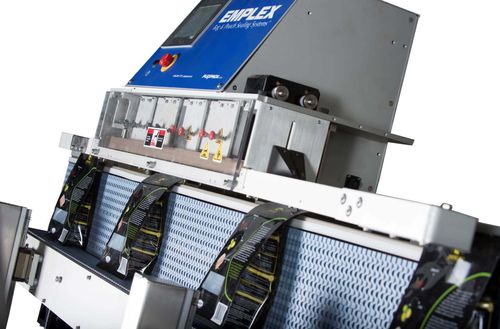

Continuous heat sealer ACS7200

semi-automaticroboticfor bag closing

The Emplex ACS Series delivers high speed sealing for horizonal and angled product handling applications. The ACS 7200 comes with 10 inches (25.4 cm) of heat and 10 inches (25.4 cm) of cooling. Sealing processes can be adjusted to accommodate variations in material, ensuring reliable seal integrity on every bag. The ACS seals any heat sealable bag and pouch up to 12 mil/300 micron in thickness (6 mil/150 micron maximum when gusseted). Common upgrades include inkjet printers, bag top trimmers, camera systems and robotic handling. • Sealer Duty = Continuous • Sealer Orientation = Angled or Horizontal • Sealer Band = Teflon • Seal Throat Depth = 2.75” (70 mm) • Frame Construction = 304 Stainless Steel frame and legs • Infeed Direction = Right to Left or Left to Right • Angle Options = 0 to 60 degrees • Pressure Rollers = Stainless Steel • Electrical = 120V 12A • Motor = ¼ HP PWM PMDC • SPL = 60 db • Temperature Range = 0-232 degrees Celsius / 0-450 degrees Fahrenheit • Heating and Cooling Capacity = 10” (25.4 cm) heating bars 10” (25.4 cm) cooling bars • Conveyor = Food/Medical Grade. Choice of Length: 6’ (1.83m), 9’(2.74m), 12’ (3.66m), 15’ (4.57m) Standard width: 12” (30.48 cm)
