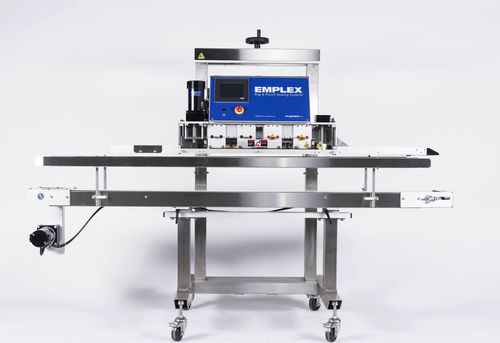

Continuous heat sealer MPS 7500manualsemi-automaticautomatic
Add to favorites
Compare this product
Characteristics
- Type
- continuous
- Operating mode
- manual, automatic, semi-automatic
- Product applications
- sachet, for bag closing
- Domain
- packaging, for the food industry, medical, laboratory, for the pharmaceutical industry, for the chemical industry, for the cosmetics industry, for heavy-duty applications
- Other characteristics
- stainless steel, vertical, with conveyor, with touchscreen controls
- Width
3.2 mm, 6.35 mm, 9.5 mm, 12.7 mm, 19.05 mm
(0.13 in, 0.25 in, 0.37 in, 0.5 in, 0.75 in)- Linear speed
20,320 mm/min
(13.3 in/s)
Description
The MPS7500 hermetically seal bags and pouches at speeds up to 800" (20.32 m) per minute and can be configured for manual, semi-automatic, or automatic loading. The sealing prcess can be adjusted to accommodate variations in material, ensuring reliable seal integrity on every bag. It can seal any heat sealable bag or pouch up to 12 mil/300 micron in thickness (6 mil/150 micron maximum when gusseted).
Sealer Band = Teflon
Seal Throat Depth = 3.5" (88 mm)
Frame Construction = 304 Stainless Steel Frame Legs
Conveyor = Food Grade 6" x 6 ft (15.2 cm x 182.9 cm) SS
Infeed Direction = Right to Left or Left to Right
Height Adjustment = Crank
Pressure Rollers = Stainless Steel or Rubberized
Electrical = 120V 12A or 220V 6A
Temperature Range = 0-200 degrees Celsius /0-392 degrees Fahrenheit
Heating and Cooling Capacity = 10” (25.4 cm) heating bars
10” (25.4 cm) cooling bars
