Electric manipulator МGR-1400

for liftingloadingindustrial

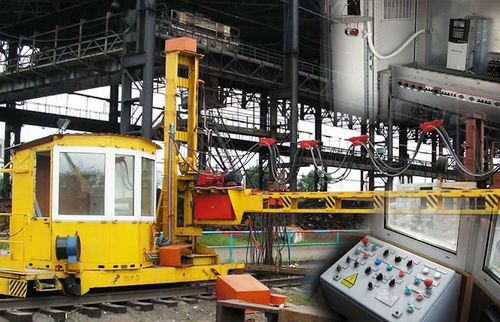

Gas cutting manipulator Gas cutting manipulator МGR-1400 electric equipment is provided for control of bulky debris and scrap machine cutting in drop-hammer workshops of metallurgical plants and Vtorchermet plants. МGR-1400 performs the following operations: •movement along working area; •shifting of arm with cutter up and down for the cutter height setting; •rotation of arm with cutter at the angle of 140° for finding point of cutting; •movement of slide with cutter along the arm; •rotation of the cutter at the angle of 10° from vertical position. МGR-1400 electric equipment includes: drives control cabinet; operator’s control panel; electric drives (trolley movement drive, arm rotation drive, arm lift drive, cutter rotation drive, blower drive, cutter slide movement drive — regulated); brakes for trolley movement drive, arm rotation drive and arm lift drive; limit switches; ignition unit; electromagnetic valves; temperature control system for oxygen and cutting gas warming units. The system consists of heating elements, measurer-regulator and resistance sensor; climate control system in operator's room; auxiliary equipment. •FUNCTIONAL SYSTEMS МGR-1400 electrical equipment consists of the following functional systems: •power circuit; •operating control, indication and signaling system; •climate control system; •lighting system; •cutting system; •drives interlocking system. Power part is executed as separate units, located inside the control cabinet. Power circuit provides start-up, stop, change of drive motors moving direction.
