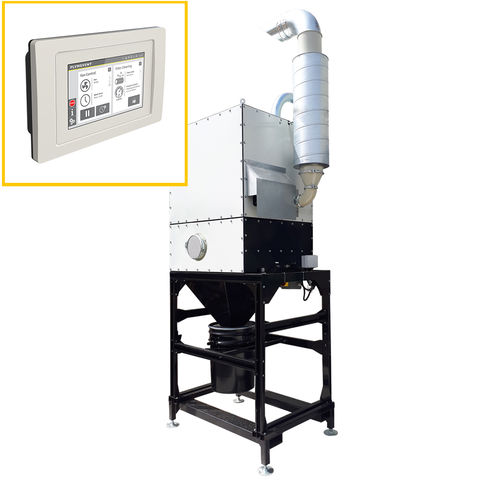

Stationary fume extractor MDB-2/HV series

weldingcartridgeautomatic

• On torch extraction is an efficient way to capture welding fumes at source. The MDB-2/HV is a heavy-duty welding torch extraction system. Features • Central filter system for up to 10 fume extraction torches. • RamAirTM pulse amplifier for efficient cleaning and long filter life. • Low sound level of only 68dB Recommended for • On torch / on tool extraction. • 6 to 10 welding torches • Heavy manual welding • Long manual welding runs The MDB-2 High Vacuum with ControlPro is a central high vacuum filter system with integrated blower for connection to 6-10* extraction torches. This system is excellent performing, highly effective and self-cleaning. This central filter system is recommended for heavy manual welding and long welding runs. Automatic filter cleaning removes the captured dust from the filter medium and drops it into the dustbin. This large dustbin has a connection lift ensuring no leakage of the hazardous dust and easy emptying. The extraction capacity of the powerful 14,5 kW blower fan can manually be adjusted to need. The unit is standardly fitted with a Variable Frequency Controller to make this possible. Optionally, the extraction system can be connected to a WCS-Control Box and Welding Cable Sensors, this sensor detects welding activity and starts or stops the unit automatically. Features • Central filter system for up to 10 fume extraction torches. • RamAirTM pulse amplifier for efficient cleaning and long filter life. • Low sound level of only 68 dB. • HMI with intuitive touch screen for easy insight in the filter system. • Extraction system can easily be relocated when the factory layout changes. • Dustbin level sensor optional
