Air bearing unit CAROBA®AirBearings

air bearing unit
air bearing unit
air bearing unit
air bearing unit
air bearing unit
air bearing unit
air bearing unit
Add to favorites
Compare this product


Characteristics

Type
air

Description

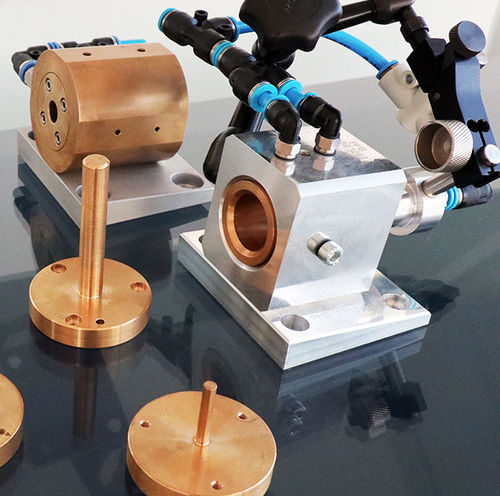

PMB AIR BEARING AND AIR BEARING MANDRELS Balancing with PMB CAROBA®air bearings: High-precision measurement results for minimum residual unbalance The demands placed on your products today and in the future are getting higher and more demanding. The trends towards higher speeds and increased demands on quality and accuracy require the lowest possible residual imbalances. The components to be balanced are becoming smaller and turn faster for the same or increasing power. The specifications of the achieved balancing are also changing, balancing is becoming more important for reliable function and performance. Balancing on slide bearings or rolls eventually reaches physical limits as requirements increase - the influence of the shaft surface on the balancing result increases with decreasing component size and increasing accuracy. Balancing in PMB air bearings is the solution here, which also has advantages for larger components. Advantages of the PMB CAROBA® AirBearings •Contact-free support of the components to be balanced - the components float gently on an air cushion •Low wear of the air bearings, long lifetime •Achievement of residual unbalances better than 1mg*mm (< 0.001 g*mm) and balancing grades better than 0.005 mm/s •Very high reproducibility and repeatability of measurement results down to the µ-gram range •Balancing speeds up to the later operating speed •Cost reduction through faster processing of the balancing objects •Easier measurement, thus increasing measurement reliability due to fewer user mistakes •Free of lubricants such as oils and greases, thus very well suited for sensitive objects, e.g. in medical technology or optics
