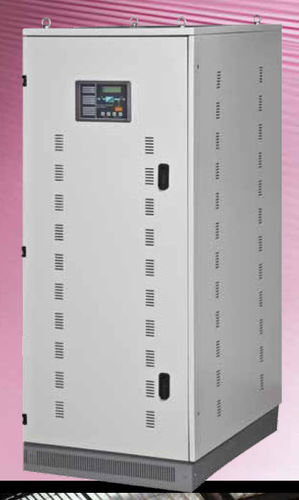

Floor-standing battery charger

Ni-Cdthyristor rectifieradjustable

Battery Charger is thyristor controlled, fully digital, static AC/DC rectifier with constant voltage / constant current characteristic. Galvanic isolation is provided with input transformer. Battery Charger is Scada ready through free contacts and communication features (Modbus protocol; RS-485 or TCP/IP port). PMI Battery Chargers are widely used in different industries such as Power Generation, Power Distribution, Power Transmission, Manufacturing, Transportation, Mining, Oil & Gas with different applications such as Alarm, Control, Signal and Supply of DC Breakers in Power Plants, Substations, Switchgears, Railways and Offshore Plants STANDARD FEATURES 6 Pulse (for 3 Phase) Input Transformer for Galvanic Isolation Front Panel with LCD Screen (2 Lines), LED Indication and MIMIC diagram Digital Metering on LCD including, Input Voltage and Current (for 1 Phase), Battery Voltage and Current, Load Voltage, Charger Output Current Redundant Supply for LCD Separate Battery Charge Current and Output Current Adjustment via Current Transformer Output LC Filter Transient Surge Protection (via Varistor) Input MCB with Auxiliary Contacts Load and Battery MCB (up to 60A) with Auxiliary Contacts Load and Battery NH Fuse (higher than 60A) with Auxiliary Contacts Forced Ventilation with Smart Fan Event History up to 250 Events 8 Free Contacts Automatic Online Battery Performance Test Automatic and Manual Boost Function
