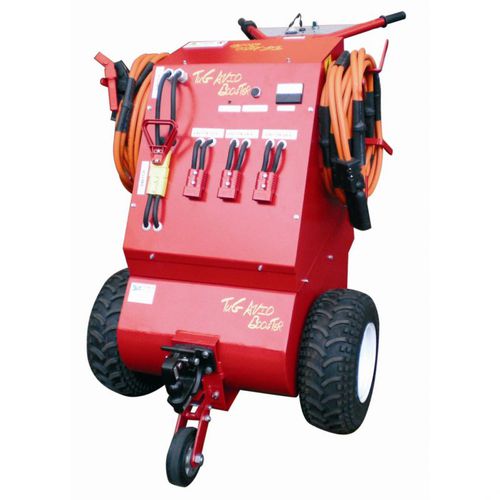

Electric tug MTB1200/Awheel-mountedtowingaircraft
Add to favorites
Compare this product
Characteristics
- Motor type
- electric
- Locomotion
- wheel-mounted
- Other characteristics
- towing, aircraft, with power supply
- Load capacity
3,000 kg
(6,614 lb)
Description
TOWING technical features: Sturdy structure, in 8mm. steel Electrical traction Separate excitation electric traction 1200W 24V, equipped with electro-brake Differential gearbox in oil bath Transfer speed 4,5Km/h (adjustable) 2 batteries AGM 100Ah 12V Towing capacity of 3000kg. on flat ground, 1500Kg. with a maximum gradient of 20% Electrically driver ball for trailer coupling or ULPIO hook Weight 290Kg. SUPPLY technical features: Power supply 230V 50/60Hz single phase + GND recharge Electronic battery charger 4A Output 28Vcc 1000A, 24Vcc 1200A, 12Vcc 1200A Max. Overload 3100A for 2 seconds Recovery time 0,1 seconds Reverse polarity audible alarm There are 2 supply cable (3m. long); one with airplane outlet and/or the other one with "rugged" pliers
