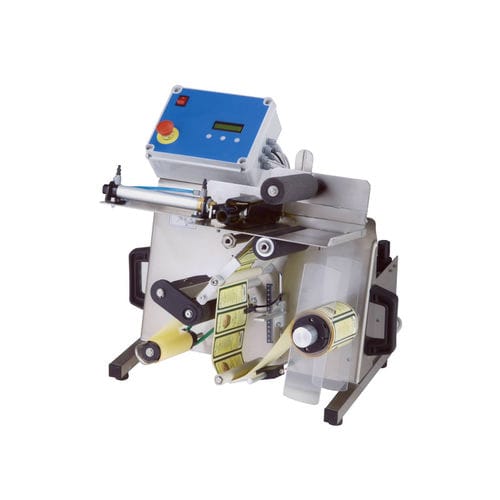

Bottle labelling machine EKO 10

for self-adhesive labelshorizontal

For cylindrical and suqare bottles /containers. Baisc machine equipped to apply 1 label. Technical data: • Container inserting in horizontal position • Pressure on the container during labelling process: 14kg • Possibility of applying labels up to a max. development of 280mm • Suitable for cylindrical sizes with a diameter between 60mm and 120mm (on request up to 35 mm / 10 mm) • Possibility to install a buffer stamping device • Labels roll holder reel with internal diameter of 76 mm (on request 40 mm) • reel external diameter: 280mm. • Paper width max: 140mm (on request 190mm) • Power supply: 230V monophasic - 50Hz • Error tolerance in label application: +/- 2 mm. (for cylindircal containers) • Construction: in compliance with current CE regulations
