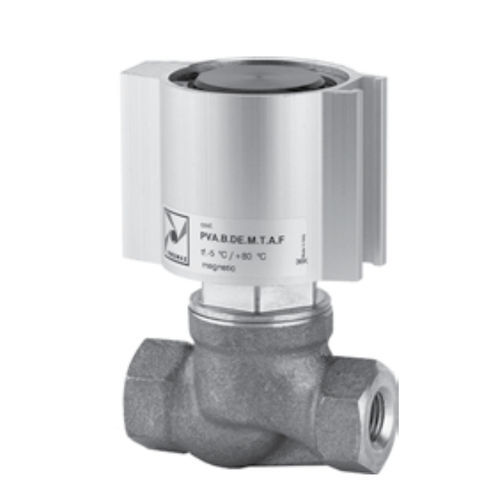

Piston valve PVA seriespneumatically-operatedfor controlfor compressed air
Add to favorites
Compare this product
Characteristics
- Type
- piston
- Operation
- pneumatically-operated
- Function
- for control
- Media
- for compressed air
- Body
- T, Y, bronze
- Number of channels
- 2-way
- Other characteristics
- normally closed, double-acting, single-acting, normally open
- DN
Max.: 2 in
Min.: 0.25 in
- Pressure
Max.: 10 bar
(145 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 150 °C
(302 °F)Min.: -10 °C
(14 °F)
Description
Pad Valves offer a reliable and economic solution to fluid control. The valve is manufactured with a 2 way Bronze body and actuated pneumatically using either a single or double acting compact cylinder which can be rotated 360°.
Versions are available with NBR, FPM or PTFE valve seals.
The barrel profile allows the use of magnetic sensors code “1500._” , “RS._” , “HS._”, for slots “A” type.
