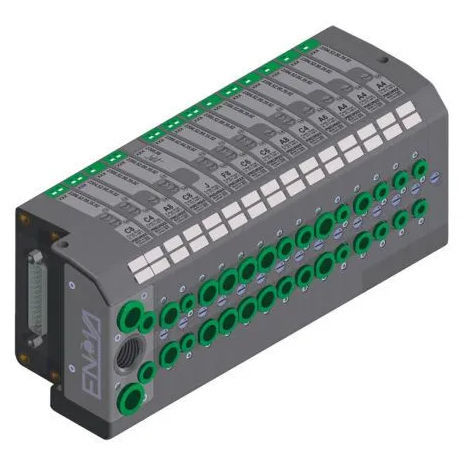

Pilot-operated solenoid valve 2300 ENOVA® series

5-wayNCNO

Technical innovation, rational design, high performance and extremely compact size: these are the main features the ENOVA® series bring to the market. Each valve comprises all the necessary pneumatic and electrical functions needed to produce a solenoid valve assembly. There are no limits to the configuration of the solenoid valve island, as full priority has been given to the end user’s needs; the addition or removal of modules is a simple operation that can be swiftly and easily achieved. The management of the electrical signals through the valves is optimized through a patented dedicated connector in each valve. Electrical connections are made via a twenty-five pin connector, which is capable of controlling up to twenty-two solenoids. Electrical and pneumatic connections are located on the same module at one end of the assembly. Serial bus nodes compatible with most common protocols are easily integrated. Most widely used and known communication protocols, such as PROFIBUS DP, CANopen®, DeviceNet, AS-interface can be directly integrated with the valve manifold by simply plugging the necessary module onto the electrical connection, maintaining IP65 environmental protection. The management of inputs has also been foreseen, and can be achieved by adding one or more expansion modules directly to the serial module. Shifting time of pneumatic directional control valves or moving parts, logic devices were measured in accordance to ISO 12238:2001, Pneumatic fluid power-Directional control valves-Measurement of shifting time.
