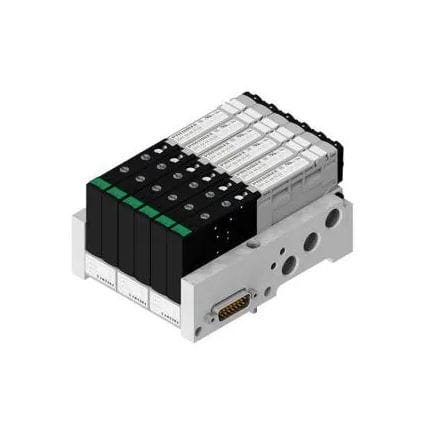

Pilot-operated solenoid valve 2200 OPTYMA-SC series

5-wayNONC

Optyma solenoid valves series it’s completed by “Compact” version. It is useful in case a limited number of solenoid valves is needed without managing input and output signals. standard base blocks provide 4 or 6 solenoid valves positions. standard base blocks can be individually sold even without solenoid valves to allow maximum configuration flexibility. Solenoid valves can be chosen from whole Opytma-S range. Manifolds made in this way allow great room and weight saving against corrispondent pneumatic group from Optyma-S series. – Flow rate: up to 550[Nl/min], using the modular base with Ø8 quick fitting tube. – Modular base available with Ø4, Ø6, Ø8 quick fitting tube. – the solenoid pilots are low consumption and fitted on the same side of the valve. – Mono and bistable valves have the same dimension. – Easy and fast assembly on the sub base thanks to the “one screw” mounting solution. – Possibility to replace a valve without the need of disconnecting the pneumatic pipes. – Electrical and pneumatic connections positioned on the same side. – Possibility to operate with different pressures and vacuum. – 4 or 6 electric signals management (two signals per position, indipendently of the mounted solenoid valve). – The ectrical connection is achieved thanks to a 9 or 15 poles connector. – The protection grade is iP65 directly integrated in the manifold components.
