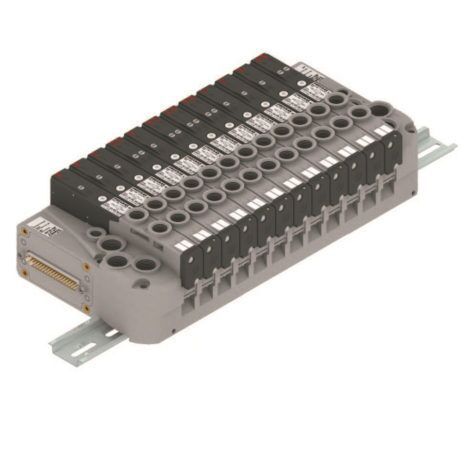

Pilot-operated solenoid valve 2500 OPTYMA-F series

5-wayNONC

The solenoid valves base mounted line including electrical connection into the manifold. Many technical features make the new product interesting: •Flow rate of 1000 Nl/min •Low consumption coils placed all in one side of the valve •Quick mounting of the valve to the base using just one screw •Quick connection of the bases thanks to 180 degree rotating pins •Possibility to use different pressures along the manifold (including vacuum) •IP65 environmental protection •Electrical connection directly integrated into the base, 32 electrical signals available (can be used to build up a manifold of 32 monostable valves, 16 bistable valves or any combination within that limit). •The electrical connection is made via 37 pin d-sub connector. •Possibility to integrate with Field Bus modules CANopen®, PROFIBUS DP, DeviceNet, EtherNet/IP, PROFINET IO RT/IRT, EtherCAT®, Powerlink and Modbus/TCP. •Possibility to connect input modules, even on the base that does not have the Field Bus module. Large use of technopolymer material reduces the overall weight of the manifold.
