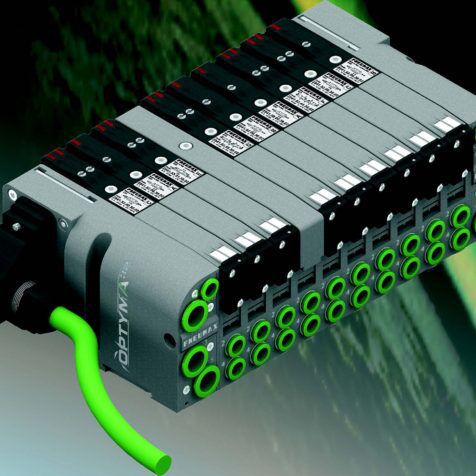

Pilot-operated solenoid valve 2500 OPTYMA-T series

5-wayNONC

With the introduction of the “T” configuration of solenoid valves with integrated pneumatic connections fitted directly on the sub base the 2500 series (called OPTYMA) is now richer than ever. Many technical features make the new product interesting: •Flow rate of 800 Nl/min •Tie rod system to hold the sub bases together •All pneumatic connections (push-in) on the same side of the manifold •Quick mounting of the valve to the base using just one screw •Possibility to replace the valve without the need to disconnect the connections •Possibility to use different pressures along the manifold (including vacuum) •IP65 environmental protection •Electrical connection directly integrated into the base, 32 electrical signals available (can be used to build up a manifold of 32 monostable valves, 16 bistable valves or any combination within that limit). •The electrical connection is made via 37 pin d-sub connector. •Possibility to integrate with Field Bus modules CANopen®, PROFIBUS DP, DeviceNet, EtherNet/IP, PROFINET IO RT/IRT, EtherCAT®, Powerlink and Modbus/TCP. Possibility to connect input modules, even on the base that does not have the Field Bus module. Large use of technopolymer material reduces the overall weight of the manifold.
