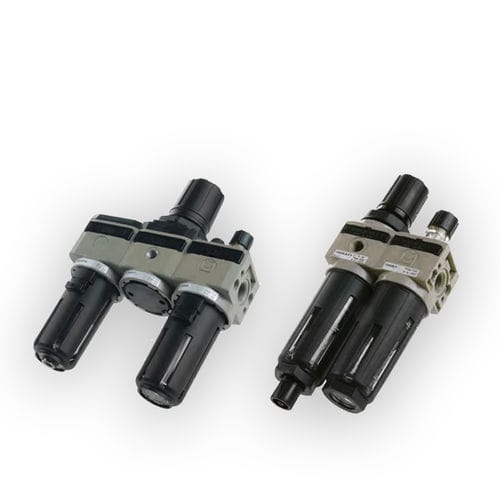

Compressed air filter-regulator-lubricator 1700

cartridgethreadedmodular

Series 1700 includes a wide range of air treatment modular elements usable without addition items in fast and simple way individually or in group. Available in 4 sizes e connections from 1/8” to 1”. The bowls are made in zinc alloy body with zinc alloy integrated connections, technopolymer with integrated metal connections for size 1 and aluminium with integrated aluminium connections for sizes 2, 3 and 4. The bowls are in Nylon, with technopolymer protection for sizes 1, 2, 3 (also available for size 1 without protection). The bowls are in metal with condensation drain display for size 4. Filters can be equipped with manual or semiautomatic condensation drain; furthermore it’s possible to install the automatic draining device inside the bowl. Il fissaggio a parete viene effettuato direttamente con viti incassate e mascherate da apposite mostrine. The pressure regulator handle is lockable in the desired position, the shut-off valves are lockable with a maximum of three pad-locks to prevent accidents or damages due to unauthorized operation. The lubricator oil flow is adjustable with proper handle and it is visibly checked through the sight dome. The progressive start-up valve, pneumatically or electropneumatically controlled, allows air supply to the circuit progressively and with adjustable time. The accessories like panel mounted brackets, pressure gauges with different scales and diameters and the air intake blocks are completing the range. They are assembled between the elements to get filtered or filtered non-lubricated air in the system.
