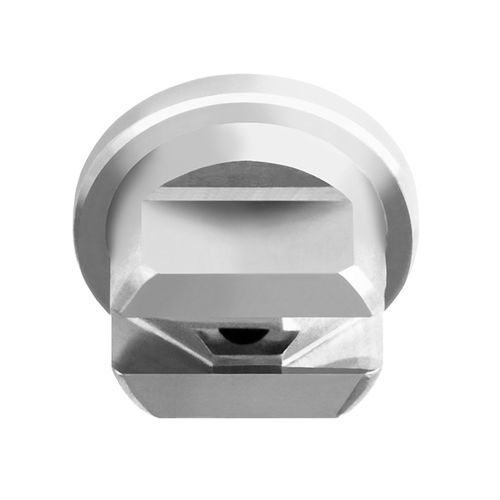

Spray nozzle GX series
for liquidsflat spraystainless steel

spray nozzle
spray nozzle
spray nozzle
spray nozzle
spray nozzle
spray nozzle
spray nozzle
Add to favorites
Compare this product


Characteristics

Function
spray
Fluid
for liquids
Stream
flat spray
Material
PVDF, stainless steel, brass
Applications
for the steel industry, precision
Spray angle
60°, 90°, 120°, 30°, 45°
Orifice diameter

Max.: 12.5 mm
(0.492 in)

Min.: 0.28 mm
(0.011 in)

Flow

Max.: 223 l/min
(58.91 us gal/min)

Min.: 0.32 l/min
(0.08 us gal/min)

Pressure

Max.: 10 bar
(145 psi)

Min.: 0.5 bar
(7.3 psi)

Description

GX FLAT FAN NOZZLE – LOW CAPACITY GX flat fan nozzle tips are usually mounted onto a pipe by means of a welded nipple or a clamp, and secured in place with a retaining nut. They can be easily replaced and the jet an be conveniently oriented in the desired direction. The tips models shown on this page delivery very low flow values. Their precisely machined small orifices can be protected from clogging by means of a filter assembled inside our nipples and clamps that are designed for this purpose. GX FLAT FAN NOZZLE – STANDARD AND LARGE CAPACITIES GX flat fan nozzle tips are usually mounted onto a pipe by means of a welded 3/8″ nipple or a clamp, and secured in place with a retaining nut. They can be easily replaced and their jet can be conveniently oriented in the desired direction. These nozzle are available in two types: 3/8″ standard capacity and 3/4″ large capacity. The tip is assembled with a pipe clamp, a welding nipple and a locknut.
