Spray nozzle RB seriescoolinggashollow-cone
Add to favorites
Compare this product
Characteristics
- Function
- spray, cooling
- Fluid
- gas
- Stream
- hollow-cone
- Material
- stainless steel, brass
- Applications
- chemical
- Spray angle
- 60°, 70°, 80°
- Other characteristics
- male, in-line
- Orifice diameter
Min.: 2 mm
(0.079 in)Max.: 18.3 mm
(0.72 in)- Flow
Min.: 0.65 l/min
(0.17 us gal/min)Max.: 172 l/min
(45.44 us gal/min)- Pressure
Min.: 0.5 bar
(7.3 psi)Max.: 10 bar
(145 psi)
Description

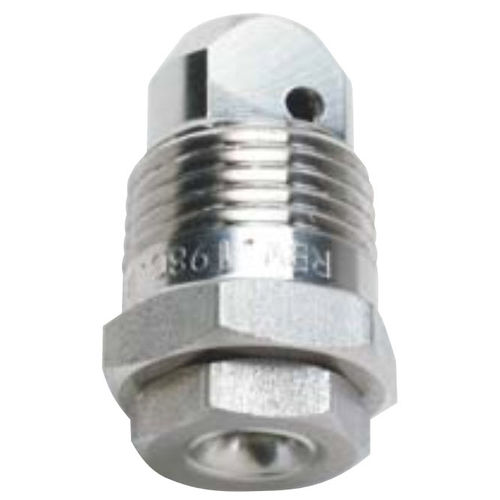

RB hollow cone nozzle, designed with no inside whirling vane and a wide unobstructed passage, is highly resistant to clogging. The liquid flow enters at high speed through the top eccentric orifice into the nozzle swirl chamber where the strong centrifugal force generates finely atomized droplets. These nozzles, the ideal choice for dust control applications, are particularly suitable for coal dust suppression and for this reason they are called “miner’s nozzles”.
