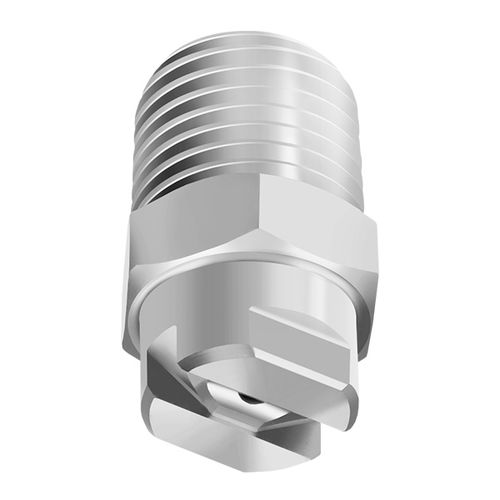

Flat spray nozzle F series
cleaningwashingfor liquids

flat spray nozzle
flat spray nozzle
flat spray nozzle
flat spray nozzle
flat spray nozzle
flat spray nozzle
flat spray nozzle
Add to favorites
Compare this product


Characteristics

Function
cleaning, washing
Fluid
for liquids
Stream
flat spray
Material
stainless steel
Applications
for the steel industry, chemical, for the paper industry
Spray angle
40°
Other characteristics
threaded, high-pressure
Orifice diameter

Max.: 3.42 mm
(0.135 in)

Min.: 0.7 mm
(0.028 in)

Flow

Max.: 191 l/min
(50.46 us gal/min)

Min.: 1.52 l/min
(0.4 us gal/min)

Pressure

Max.: 200 bar
(2,900.8 psi)

Min.: 20 bar
(290.1 psi)

Description

F FLAT FAN NOZZLE – HIGH PRESSURE WASHING F flat fan nozzle is designed for high-pressure washing applications. Their specially designed inner profile allows for even jet distribution, which results in effective and uniform cleaning action over the surface being processed. All nozzles are precisely machined and made of hardened stainless steel AISI 416.
