Cleaning nozzle UBA series

washingfor watermultidrop

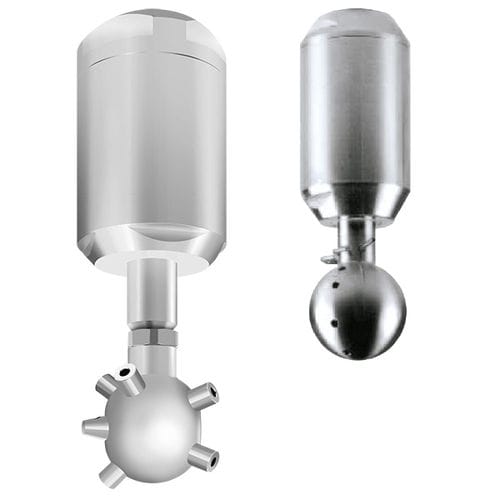

UBA series devices produce water jets from a spray head rotating around a vertical axis. However, they feature a sophisticated design where a simple friction motor puts the head in slow motion. As the motor produces a low rotation velocity, the jets can work with their maximum efficiency since they are not broken into droplets: this makes it possible to obtain a higher impact force onto the tank wall. The head design can include one jet directed upwards meant to clean the tank roof area around the feed pipe, a difficult area in many instances, realizing a true 360° spray pattern. Superior cleaning power, faster cleaning cycles, and lower volumes of cleaning solution are among the main advantages of this product. UBA washing heads are available in two sizes and three different jet patterns, as shown in the table below. Depending upon feed pressures, the rotation speed varies between 5 and 12 rpm. Thread connections are available in BSP standard (last letter of the code: G) and NPT standard (last letter of the code: N). The UBA tank washing head is designed to accommodate a wide range of different nozzles on its head, both in number and type (flat fan, straight, etc.). Every personalization involves some difference in the performance compared to the ones in the table: they will be provided case by case. Our UBA tank washing head is ATEX compliance available: this certification is valid only for AISI 316L Stainless Steel and Alloy C22 materials. Washing liquid temperature must be ≤ 90°C.
