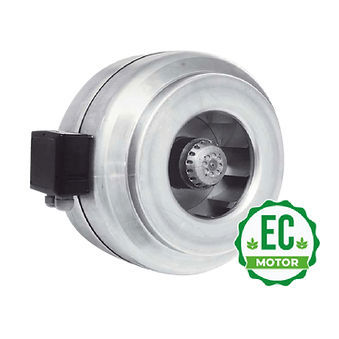

Duct fan P-YKF seriesIP44radial230VAC
Add to favorites
Compare this product
Characteristics
- Type
- duct, IP44
- Configuration
- radial
- Supply voltage
- 230VAC
- Drive mechanism
- EC motor
- Other characteristics
- backward curved
- Air flow
Max.: 1,370 m³/h
(48,381.093 ft³/h)Min.: 345 m³/h
(12,183.56 ft³/h)- Diameter
Max.: 405 mm
(15.945 in)Min.: 255 mm
(10.039 in)- Rotational speed
Max.: 3,600 rpm
(22,619 rad.min-1)Min.: 2,500 rpm
(15,708 rad.min-1)- Noise level
Max.: 48 dB
Min.: 44 dB
Description
• Thermal protection for the -inline motor units
• High Efficiency
• Low noise level
• Low power consumption
• IP44 motor protection rating
• Min./Max. Ambient temperature -25/60°C
• Backward curved radial blades Galvanized sheet
• Easy installation and set-up
•
